G Code Help

[KeithDaleen]

I have this G Code. How do I enter it?

N10 X2.1399 Y0.6953 (θ 72.00)
N20 X1.3225 Y-1.8203 (θ 144.00)
N30 X-1.3225 Y-1.8203 (θ 216.00)
N40 X-2.1399 Y0.6953 (θ 288.00)
N50 X-0.0000 Y2.2500 (θ 360.00

[MartinW.Mcclary]

First you NEED to add to it. Inches or MM. Feed rate, Absolute or Relative. Raise up the Z axis for safety height. Then add your code to that. Everything within ( ) is a notation and not a command. You also need to remove the line numbers.

G-Code and M-Code List [ Easy Examples & Tutorials ]

G20

G90

F50

G01 Z.25F10

G00X0.0,Y0.0

F30

N10 X2.1399 Y0.6953 (θ 72.00)
N20 X1.3225 Y-1.8203 (θ 144.00)
N30 X-1.3225 Y-1.8203 (θ 216.00)
N40 X-2.1399 Y0.6953 (θ 288.00)
X-0.0000 Y2.2500 (θ 360.00

M05

M30

After all that…this is what it looks like in Easel, assuming it is in inches.

[MartinW.Mcclary]

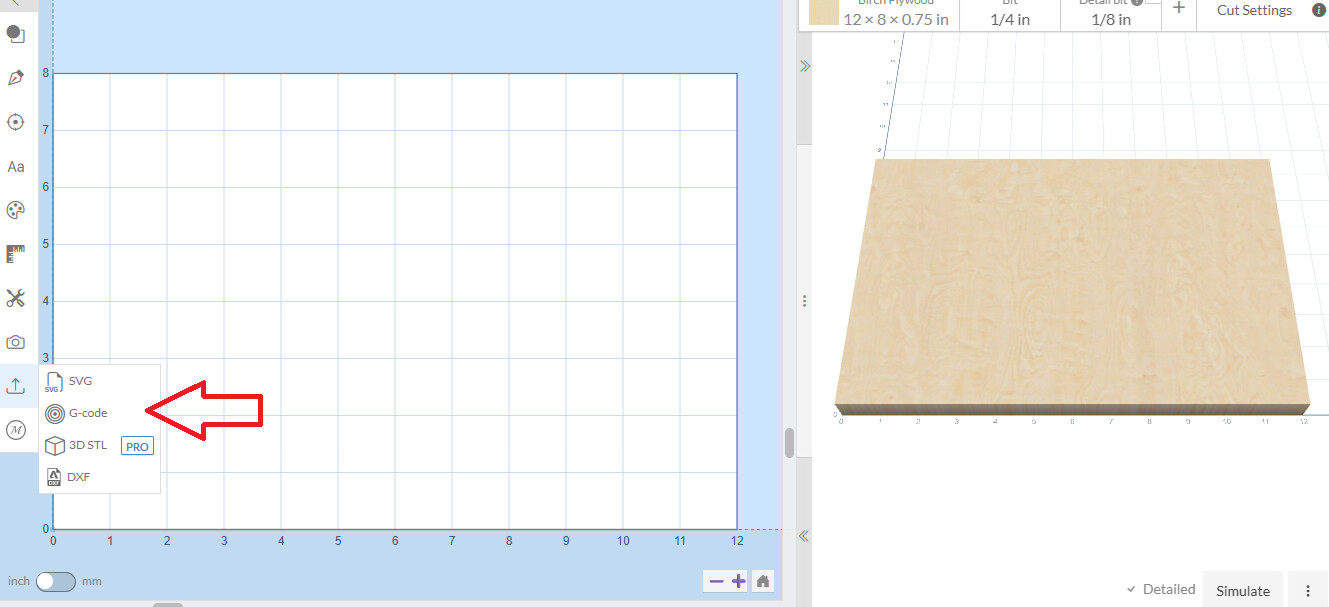

To load gcode you need to go to the import button on the left and then open your gcode file. Grbl isn’t like regular Gcode from other sources. You need a grbl post processor.

[KeithDaleen]

Thank you!
